Host Bus Adapter (HBA) Dell HBA355 & HBA465

Kontroler HBA SAS/SATA non-RAID

HBA Dell untuk menghubungkan drive SAS/SATA dalam mode non-RAID (pass-through)
HBA355 (SAS 12Gb/s) dan HBA465 (SAS 22.5Gb/s), PCIe Gen 4
Varian internal (i) untuk drive di dalam server, varian eksternal (e) untuk enclosure JBOD/PowerVault
Tanpa cache, drive tampil langsung ke sistem operasi
HBA355i/HBA355e juga mendukung tape drive

HARGAKlik WhatsApp

Harga, ketersediaan unit, dan estimasi pengiriman kami kirimkan lewat WhatsApp sesuai konfigurasi di halaman ini.

Tanya Harga via WhatsApp Lihat katalog Dell Technologies

Pilihan konfigurasi Host Bus Adapter (HBA) Dell HBA355 & HBA465

6 konfigurasi. Tekan tombol hijau pada konfigurasi yang Anda pilih untuk menanyakan harga lewat WhatsApp.

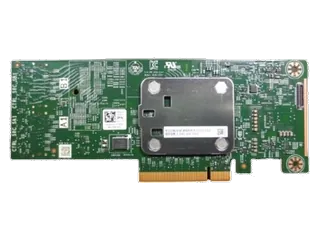

Dell HBA355i Adapter (internal, 12Gb/s)Part number 405-AAXW

Harga klik WhatsApp

Rincian konfigurasi 1

Form factor	Adapter (kartu PCIe)
Interface	SAS 12Gb/s, SAS/SATA 6Gb/s, SAS/SATA 3Gb/s; tape drive
Port	16 port internal (2x8)
Maks. drive	16 per kontroler, hingga 50 dengan SAS expander
Boot	Ya
Queue depth	7552
Chipset	LSI Fusion-MPT 12G SAS3816
Kompatibel	PowerEdge C6525, C6615, C6620, HS5620, R260, R360, R660, R660xs, R750, R750xs, R760, R760xd2, R760xs, R7615, R7625, R860, T360, T550, T560, XR11, XR12, XR5610

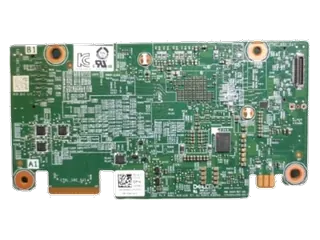

Dell HBA355i Front (internal, 12Gb/s)Part number 405-AAXV

Harga klik WhatsApp

Rincian konfigurasi 2

Form factor	Front (modul depan)
Interface	SAS 12Gb/s, SAS/SATA 6Gb/s, SAS/SATA 3Gb/s
Port	16 port internal (2x8)
Maks. drive	16 per kontroler, hingga 50 dengan SAS expander
Boot	Ya
Queue depth	7552
Chipset	LSI Fusion-MPT 12G SAS3816
Kompatibel	PowerEdge HS5620, R350, R450, R550, R650, R650xs, R660, R6615, R6625, R750, R750xs, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960, T550, T560, XR7620

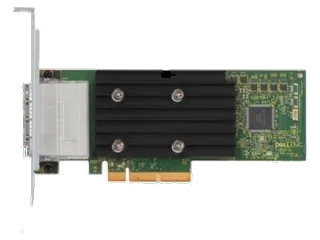

Dell HBA355e Adapter eksternal LP/FH (12Gb/s)Part number 405-AAZY

Harga klik WhatsApp

Rincian konfigurasi 3

Form factor	Adapter eksternal (low profile/full height)
Interface	SAS 12Gb/s; tape drive
Port	16 port eksternal (4x4)
Maks. drive	240
Boot	Tidak
Queue depth	7552
Enclosure	PowerVault MD1400/MD1420, ME484, ME5 series
Kompatibel	PowerEdge C6420, HS5620, R240, R250, R260, R340, R350, R360, R440, R450, R540, R550, R650, R650xs, R660, R660xs, R6615, R6625, R750, R750xa, R750xs, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960, T140, T150, T350, T360, T560, XR5610; PowerVault MD2460, ME5012, ME5024, ME5084, ME512, ME5212, ME5224, ME524, ME5284, ME584

Dell HBA465i Adapter (internal, 22.5Gb/s)

Harga klik WhatsApp

Rincian konfigurasi 4

Form factor	Adapter (kartu PCIe)
Interface	SAS 22.5Gb/s, SAS 12Gb/s, SATA/SAS 6Gb/s
Port	16 port internal (2x8)
Maks. drive	16 per kontroler tanpa expander, hingga 240 SAS/SATA
Boot	Ya (khusus UEFI)
Queue depth	8192
Chipset	SAS4016W Tri-Mode IOC

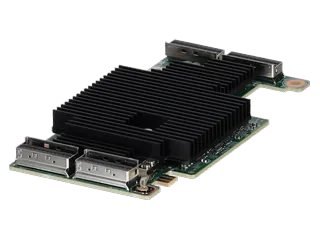

Dell HBA465i Front (internal, 22.5Gb/s)Part number MXXXH

Harga klik WhatsApp

Rincian konfigurasi 5

Form factor	Front (modul depan)
Interface	SAS 22.5Gb/s, SAS 12Gb/s, SATA 6Gb/s
Port	16 port internal (2x8)
Interface host	PCIe 4.0 x16
Boot	Ya (khusus UEFI)
Queue depth	8192
Kompatibel	PowerEdge R660, R760, R6615, R6625, R7625

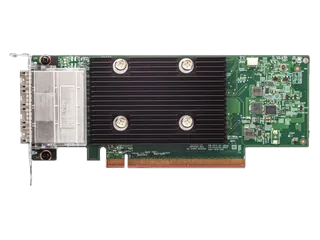

Dell HBA465e Adapter eksternal FH/LP (22.5Gb/s)Part number 405-BBDD

Harga klik WhatsApp

Rincian konfigurasi 6

Form factor	Adapter eksternal (full height/low profile)
Interface	SAS 22.5Gb/s, SAS 12Gb/s
Port	4 port eksternal
Boot	Tidak
Queue depth	8192
Kompatibel	PowerEdge R470, R670, R6715, R6725, R770, R7715, R7725; PowerVault MD2412, MD2424, MD2460, ME5012, ME5024, ME5084, ME512, ME5212, ME5224, ME524, ME5284, ME584

Foto per konfigurasi: sebagian foto ilustrasi dari marketplace (bukan foto resmi produsen); kemasan dan label unit dapat berbeda.

Tentang Host Bus Adapter (HBA) Dell HBA355 & HBA465

Mencari Host Bus Adapter (HBA) Dell HBA355 & HBA465? PT. Azza Technologies Indonesia menjual Host Bus Adapter (HBA) Dell HBA355 & HBA465, kontroler HBA SAS/SATA non-RAID, untuk perusahaan dan instansi, dari Jakarta untuk kebutuhan bisnis di seluruh Indonesia. Pilih salah satu dari 6 konfigurasi di atas, lalu tekan tombol hijau untuk menanyakan harga dan ketersediaan lewat WhatsApp; pembelian dilayani per PO.

Spesifikasi umum Host Bus Adapter (HBA) Dell HBA355 & HBA465

Model	Host Bus Adapter (HBA) Dell HBA355 & HBA465
Merek	Dell PowerEdge Host Bus Adapter
Mode	Non-RAID (pass-through)
Cache	Tidak ada
Interface host	PCIe Gen 4

Product summary (English)

Dell PowerEdge host bus adapters for non-RAID SAS/SATA connectivity: HBA355i/HBA355e (12Gb/s SAS) and HBA465i/HBA465e (22.5Gb/s SAS), internal and external, PCIe Gen 4.

Contact PT. Azza Technologies Indonesia on WhatsApp (+62 811 8805 115) for the price and availability of the Host Bus Adapter (HBA) Dell HBA355 & HBA465 in Jakarta and across Indonesia.

Konfigurasi di atas adalah contoh penawaran dan dapat disesuaikan dengan kebutuhan. Harga, ketersediaan, garansi, dan jadwal pengiriman dikonfirmasi dalam penawaran; status partner atau distributor resmi tidak dinyatakan.
